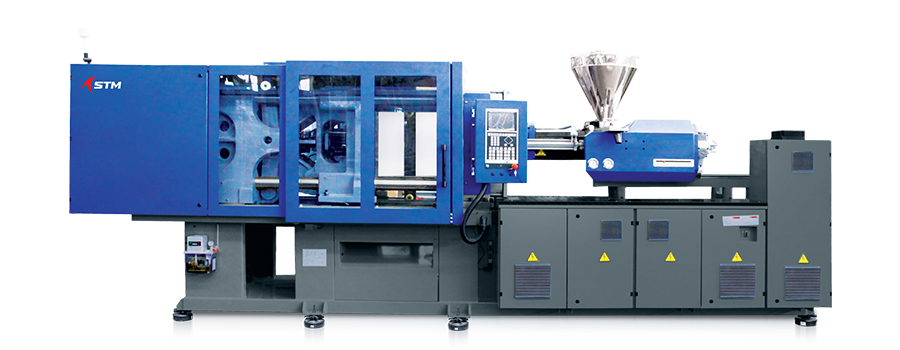

STM DT Series Plastic Injection Moulding Machine

Available Range : 80 - 800 Tonnage

Toggle Mechanism : H-Type Toggle

Our plastic injection moulding machine is a high-performance solution built for durability and precision in plastic processing machinery. Designed with a toggle mechanism, it ensures reliable operation, faster cycles, and consistent quality in every shot.

Ideal for plastic parts manufacturers, this machine features
Sturdy and robust construction for long-lasting performance
Efficient clamping with toggle mechanism for high-speed production
Superior moulding accuracy for consistent part quality
Optimized design for energy-efficient and smooth operation

STM Plastic produces plastic injection molding machines with technology advantages that are synonymous with trust and more value for clients.

Integrated front toggle design and maximum guarantee of concentricity
Energy efficient servo system backed by world class PLC controller.
Robust H-type toggle system
Quick response injection unit mounted on LM Guideways.
Mechanical interface on per Euromap -18 easy for robot installation
Box type fixed platen with wide skates on moving platen, enhancing mould life.
All casting parts are designed with finite element analysis (FEA)
Modular design injection units for customization to every individual application.

Specification

Clamping Force: 800 kN - 8000 kN
Tie-Bar Distance: 320x320 - 1020x1020 (mm)
Clamping Stroke: 330 - 1050 (mm)
Min. Mold Height: 120 - 450 (mm)
Max. Mold Height: 330 - 1020 (mm)
