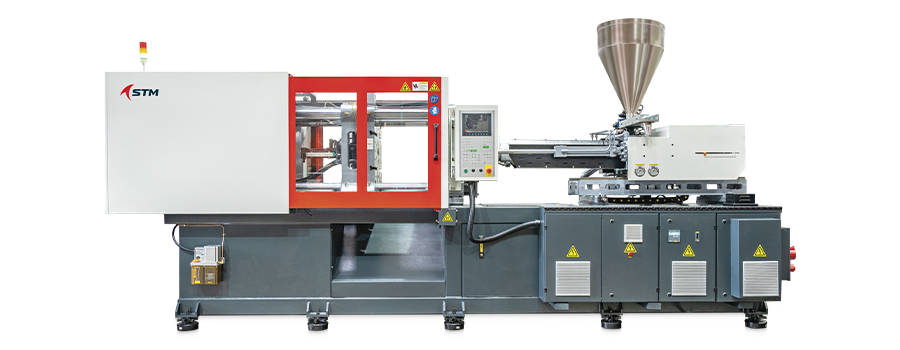

STM Cresto Series Plastic Injection Moulding Machine PET

Available Range : 120-200

Toggle Mechanism : H-Type Toggle

The STM sets a new standard in plastic parts manufacturing machinery with advanced toggle technology. Our injection moulding machinery is built to be robust and reliable. Our system delivers accurate, compatible, and energy-saving performance. Multifunctional and user-friendly, it offers seamless operation for modern manufacturing needs.

STM Plastic produces plastic injection molding machines with technology advantages that are synonymous with trust and more value for clients.

Integrated front toggle design and maximum guarantee of concentricity
Energy efficient servo system backed by world class PLC controller.
Robust H-type toggle system
Quick response injection unit mounted on LM Guideways.
Mechanical interface on per Euromap -18 easy for robot installation
Box type fixed platen with wide skates on moving platen, enhancing mould life.
All casting parts are designed with finite element analysis (FEA)
Modular design injection units for customization to every individual application.

Specification

Clamping Force: 1200 kN - 2000 kN
Tie-Bar Distance: 430x430 - 570x570 (mm)
Clamping Stroke: 380 - 550 (mm)
Min. Mold Height: 150 - 230 (mm)
Max. Mold Height: 500 - 730 (mm)
